GENERAL INFORMATION |
| Model Type |

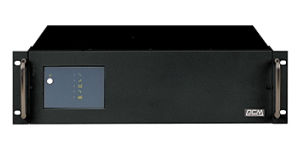

KING RM |
|
Model Name
KIN-2200APRM
 |
|
|
AC INPUT |
| AC
Input Capacity on Battery |
2200VA |
|
AC Input Voltage |
(+/-) 25% at line input |
|
AC Input Frequency |
50
or 60 Hz+/-10% (auto sensing) |
|
|
AC OUTPUT |
| AC Output
Voltage |
Simulated sine
ware at 100V or 110V/115V/120V or 220V/230V/240V +/-5% |
|
AC Output Frequency |
50 or 60 Hz +/- 0.5% |
| AC Output
Voltage Regulation |
AVR automatically increase output voltage 15%
above input voltage if -9% to -25% of nominal. AVR decrease output
voltage 13% below input voltage if +9% to +25% of nominal |
|
AC Output Transfer |
2/4 milliseconds, including detection time |
|
|
PROTECTION |
|
Protection Spike |
320 Joules, 2ms |
|
Protection EMI/RFI |
10dB at 0.15 MHz, 50 dB at 30 MHz |
|
Protection Overload |
UPS automatic shutdown if overload exceeds 110% nominal at 60 sec
and 130% at 3 sec |
|
Protection Unit |
Fuse for overload & short circuit protection |
|
Protection 10 BaseT |
Network (UTP, RJ-45) compatible jacks |
|
Protection Short Protection |
UPS output cut off immediately or input fuse
protection |
|
|
BATTERY |
| Battery Type |
Sealed,
Maintenance-free lead acid |
|
Battery Typical |
8 hours (to 90% of full capacity) |
| Battery
Protection |
Automatic
self-test & discharge protection, replace battery indicator |
|
Battery Run Time |
85 - 95 minutes |
|
|
PHYSICAL |
|
Physical Weight kgs RM |
28 |
|
Physical Weight lbs RM |
(61.1lb) |
|
Physical Shipping Weight kgs |
30.7 |
|
Physical Shipping Weight lbs |
(67.5lb) |
|
Physical Dimension mm Tower |
N/A |
|
Physical Dimension inch Tower |
N/A |
|
Physical Dimension mm RM |
483x351x130 (3U) |
|
Physical Dimension inch RM |
N/A |
|
|
|
|
ALARM |
| Alarm Battery
Backup |
Slow beeping
sound (about 0.47 Hz) |
|
Alarm Battery Low |
Rapid beeping sound (about 1.82Hz) |
| Alarm Overload |
Continue
beeping sound |
|
|
INTERFACE |
| Interface
RS-232 |
RS-232C
Bi-directional communication port |
|
|
ENVIRONMENT |
|
Environment Ambient |
3,500 meters max. elevation, 0-95% humidity
non-condensing, 0-40 deg c |
|
Environment Audible |
<40dBA (1 meter from surface) |
|
Environment Storage Condition |
15,000 meters max. |
|
